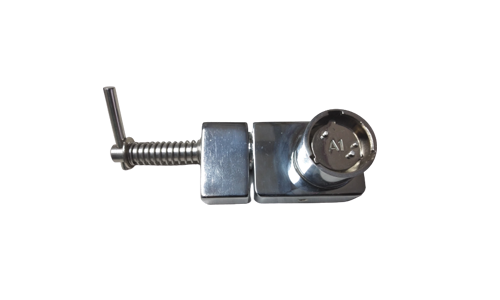

This surface mounted two piece door interlock has an integral mechanism which ensures that the key inserted to gain access cannot be removed until the door or guard has been securely closed and the bolt fully engaged.
This lock is available in the Pin type and Figure type, versions in brass with aluminium alloy housing.
| BOLT ASSEMBLY | CONTROL KEY |
|---|---|
| BOLT ASSEMBLY ENGAGED IN TO THE LOCK | KEY IS IN RELEASED POSITION |
| BOLT ASSEMBLY RELEASED FROM THE LOCK | KEY IS IN TRAPPED POSITION |
| MODEL | MATERIAL | FINISH |
|---|---|---|
| ILD - 100 | BRASS | UNPLATED BRASS |
| ILD - 100 N | BRASS | NICKEL PLATED |
| ISD - 100 | STAINLESS STEEL | MIRROR FINISH |
| MODEL | KEY ROTATION | BOLT ASSEMBLY ORIENTATION | KEY POSITION |
|---|---|---|---|
| ILD - 100 | CW | L/R L : LEFT R : RIGHT |
0 : KEY IN BOLT OUT |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILBv-P-N-100-CW-0-0 is an access door interlock, pin type, Brass, Nickel Plated, clockwise, Left hand bolt assembly, without flip cap.

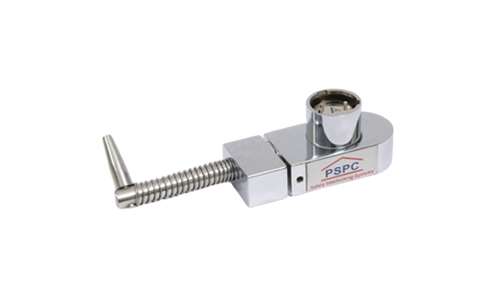

This surface mounted two-piece door interlock has an integral mechanism which ensures that the key inserted to gain access cannot be removed until the door or guard has been securely closed and the bolt fully engaged. This standard unit has blind tapped back mountings which make it tamper proof from the outside.
A floating bolt mounting bracket which provides flexibility to accommodate misalignment is also available. The smaller version is called ILH series.
Trap the Key into the door Interlock and turn the locking bolt 90o anticlockwise direction, now locking bolt released from the lock assembly, now door can be able to open.
| MODEL | MATERIAL | FINISH |
|---|---|---|
| ILH | BRASS | UNPLATED BRASS |
| ILH – N | BRASS | NICKEL PLATED |
| ISH | STAINLESS STEEL | MIRROR FINISH |
| MODEL | KEY ROTATION | BOLT ORIENTATION |
|---|---|---|
| ILH | CW/ACW | L/R L - LEFT R - RIGHT |
| ISH | CW/ACW | L/R L - LEFT R - RIGHT |
L - LEFT and R - RIGHT
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILH-P-N-100-L-CW-0 is an access door interlock, pin type, Brass, Nickel Plated, clockwise, Left hand bolt assembly, without flip cap.

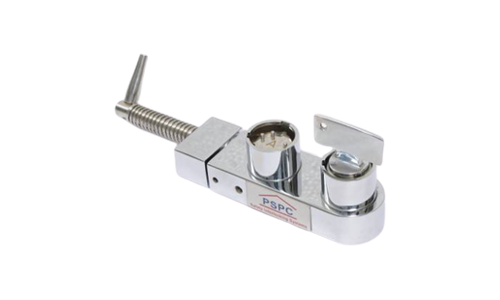

This series is a heavy-duty door interlock double version of “key exchange” and “two keys trapped” types. Popularly these interlocks are used in robot cell applications.
Normally they are available with rear mounting holes and are mounted on rear adapter plate. Through mounting holes and floating bolt mounting bracket to overcome guard misalignment, are also available. Integral switch with ILH is also available.
For Door Interlocks with Key exchange type: Trap the Key into the door Interlock and turn the locking bolt 90o anticlockwise direction, now locking bolt released from the lock assembly, now door can be able to open. And another Set of multiple keys can be release from the door interlocks to open other equipment.
| MODEL | MATERIAL | FINISH |
|---|---|---|
| ILH 2 | BRASS | UNPLATED BRASS |
| ILH – 2N | BRASS | NICKEL PLATED |
| ISH 2 | STAINLESS STEEL | MIRROR FINISH |
| MODEL | KEY ROTATION | BOLT ORIENTATION | LOCK TYPE |
|---|---|---|---|
| ILH2 | CW/ACW | L/R L-LEFT R - RIGHT |
TYPE1 – EXCHANGE TYPE 2 – BOTH KEY TRAPPED |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILH-P-2N-CW-L-1-0 is a double door access door interlock, pin type, Brass, Nickel Plated, clockwise, left hand bolt assembly, exchange type, without flip cap.

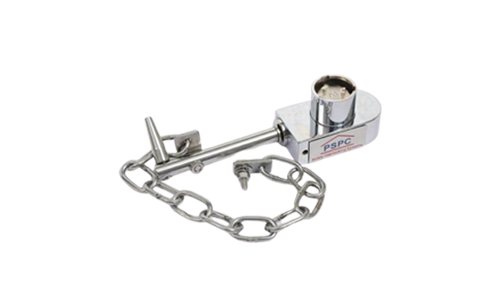

This door interlock is ideal for us in places where alignment is extremely difficult by providing free movement of the bolt through heavy duty stainless steel welded link chain attachment. Both surface & through hole mounting versions are available.
Trap the Key into the door Interlock and turn the locking bolt with chain and turn the locking bolt with chain 90o anticlockwise direction, now locking bolt released from the lock assembly, now door can be able to open.
| MODEL | MATERIAL | FINISH |
|---|---|---|
| ILP | BRASS | UNPLATED BRASS |
| ILP – N | BRASS | NICKEL PLATED |
| ISP | STAINLESS STEEL | MIRROR FINISH |
| MODEL | KEY ROTATION | BOLT ORIENTATION | KEY POSITION |
|---|---|---|---|
| ILP | CW | L/R L - LEFT R – RIGHT |
0: KEY IN BOLT OUT |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILP-P-N-200-L-CW-0-0 is an access door chain bolt assembly, pin type, Brass, Nickel Plated, clockwise, 200 mm SS chain, key in bolt out, without flip cap.

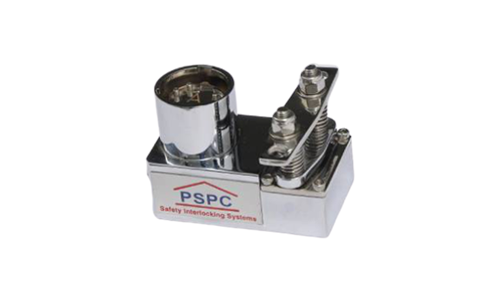

This is a self-aligning “slam action” interlock for lighter guards and covers. They will release the control key only when the latching mechanism is engaged. They are available in front and rear latch styles for all applications. Through hole mounting versions are available for the entire range.
The self-ejecting feature of this series ensures that released guards can easily be located and the standard floating latch assembly will cope with minor misalignment due to wear.
The slam lock is available in Pin type and Figure type. Both types are available in Brass and Stainless Steel.
Trap the Key into the door Interlock and latch eject from lock with spring assembly, now door can be able to open and vice versa.
| MODEL | LATCH POSITION | MATERIAL | FINISH |
|---|---|---|---|
| ILG/ILG-N/ISG | FR : FRONT / RE : REAR | BRASS/ STAINLESS STEEL | BRASS - UNPLATED / NICKEL PLATED STAINLESS STEEL - MIRROR FINISHED |
| MODEL | TYPE | LATCH POSITION | LATCH | LATCH ORIENTATION |
|---|---|---|---|---|
| ILG / ILG-N / ISG | P PIN : PIN | FR : FRONT RE : REAR |
0 = LATCH 1 = LATCH + SPRING + PLATE |
L/R/T/B L : LEFT R : RIGHT T : TOP B : BOTTOM |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILG-P-N-FR-0-L-CW-0: Slam lock, pin type, Brass, Nickel Plated, clockwise, front latch, only latch assembly, left hand latch, without flip cap.

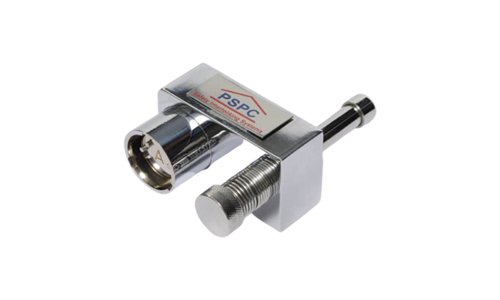

For use in sliding guard applications, this interlock incorporates a self-ejecting stainless steel bolt with a throw upto 40mm. The key is released only when the bolt is depressed and engaged in corresponding holes in the sliding guard. Through mounting hole versions are also available.
Trap the Key into the door Interlock and self-ejecting stainless-steel bolt from lock with spring assembly, now door can be able to open and vice versa.
| MODEL | MATERIAL | FINISH |
|---|---|---|
| ILGS | BRASS | UNPLATED BRASS |
| ILGS – N | BRASS | NICKEL PLATED |
| ISGS | STAINLESS STEEL | MIRROR FINISH |
| MODEL | KEY ROTATION | BOLT ORIENTATION | KEY POSITION |
|---|---|---|---|
| ILGS | CW | L/R/T/B L – LEFT R – RIGHT T –TOP B – BOTTOM |
0: KEY IN BOLT RETRACTED |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILGS-P-N-R-CW-0-0: Sliding guard lock, pin type, Brass, Nickel Plated, clockwise, Right hand bolt assembly, Key in bolt retracted, without flip cap.
